Design Innovation
Membrane Structure uses light weight material made of Polymer Textile to be roofing material. This textile gives designers, architects and engineers the freedom of design innovation to experiment with exciting shapes for their building. With this reason, design and innovation is very important. Fastech has in-house research & development division; our architects, who have many years of experience in Membrane Structure, will work closely with owners, architects or designers in order to get the best conceptual design for our valued customers. Included in the design innovation service are as below;
To get the suitable & attractive canopy shape, we need to design precisely to make sure that the fabric has sufficient curvature in both directions. This stage we normally call “Form Finding”
The structure that is used to support fabric roof can be in variety shapes and types. As a designer, we always design a supported structure to suit the shape and form of Membrane Fabric. The elegance and exciting supported structure will enhance the look of overall Membrane Structure.
Membrane Structure is a custom made fabric structure; therefore, all of connection systems and cables need to be design carefully to suit the shape of Membrane fabric. For every project our design design & development architect always put their high effort to experiment and create new challenging connection systems for customers satisfaction and successful project.
Design and Engineering
Membrane Structure uses light weight material made of Polymer Textile to be roofing material. This textile gives designers, architects and engineers the freedom of design innovation to experiment with exciting shapes for their building. With this reason, design and innovation is very important. Fastech has in-house research & development division; our architects, who have many years of experience in Membrane Structure, will work closely with owners, architects or designers in order to get the best conceptual design for our valued customers. Included in the design innovation service are as below;
This design procedure refers as Membrane Analysis. At this stage, design engineer will assign all related load and force to arch coordinate which depending on the shape of fabric. There are 2 criteria of force that we introduce at Membrane Analysis. CRITERIA 1: INTERNAL FORCE: This force means pre-stress of the fabric CRETERIA 2: EXTERNAL FORCE: This force includes: wind load, live load, service load, snow load, etc. The reaction force report will be produced after Membrane Analysis. This engineering report will be used by client’s structural engineer to design foundation. Moreover, at this stage we can design the pattern & cutting seam in order to cut the fabric.
We perform structure analysis after obtain reaction force report. At this phase we are designing to get the proportionate size and detailing of structural support. The shop drawing for structure support being produced at this stage. Supported for Membrane Structure can be many types such as: steel, concrete, wood, depending on the requirement/conceptual. Commonly supported structure system for Membrane are rigid frame, suspension, cable net system, air supported system.
This procedure we design the shape and size of all connection systems such as Edges, Inside line, Ridge cable, Corner plates, Tendons, etc. Being a custom made fabric roof structure the connection system will also need to be custom made as well as other component to suit the shape and form of the fabric. At this stage shop drawing for connection system is produced.
Fabrication

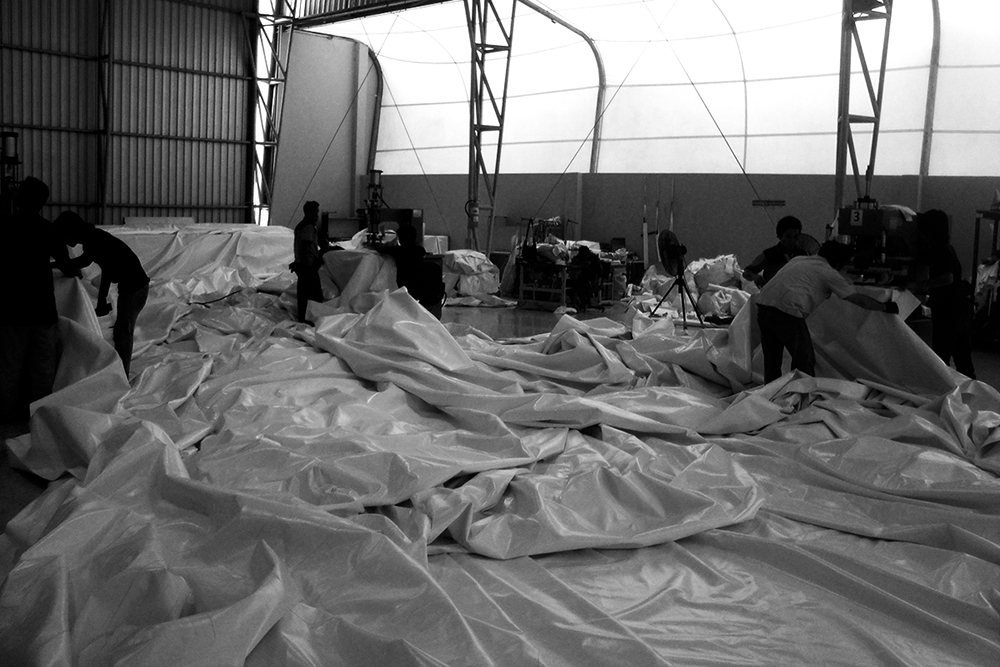

In-house manufacturing facilities Fastech has in-house manufacturing facilities which includes advance technology automatic plotter & cutting machine, automatic Welding Machine. We are therefore convinced that we can do a quality job with accuracy and expert workmanship
Installation

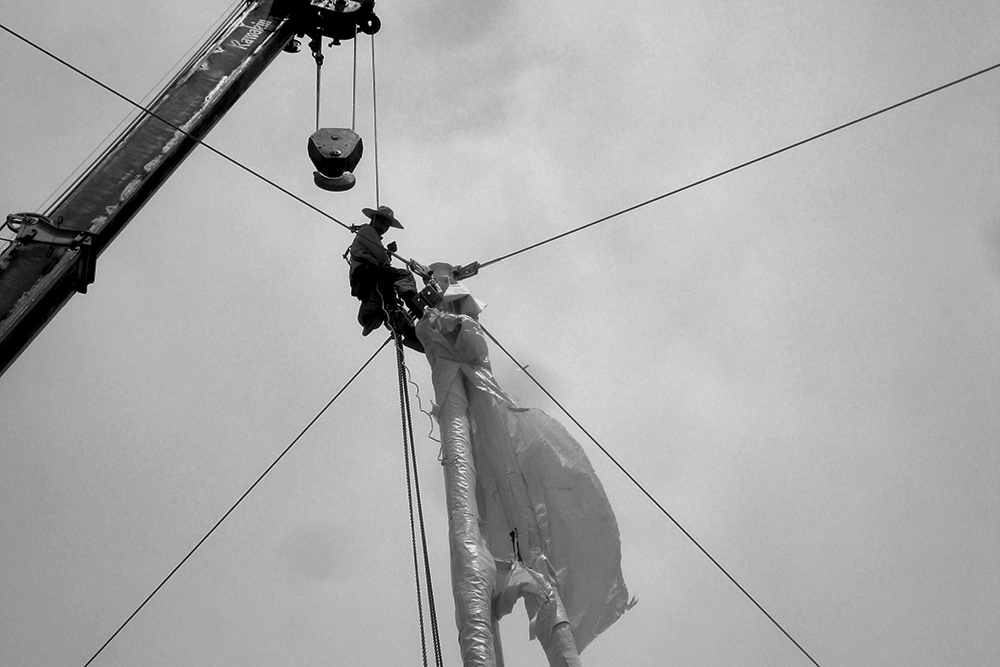

High effort & expertise The high risk for membrane structure is at installation, hence our engineering team has put high effort & expertise to design method of installation.
Maintenance
Even though the textile roof is manufactured with an efficient methodology that it is almost maintenance-free for its planned life, cleaning is still essential when natural rainwater is lacking. Moreover, cables is external situations are subject to corrosion and should be regularly inspected. We have classified this maintenance services into two parts
In some case that the membrane is damaged, Fastech has the service team to do site repair as we have mobile welding machine. However, not all damage can be repaired. At the site, sometimes environment can be unsuitable or unsafe for fabric to be repaired. We may need dismount and return the fabric to the factory for repair.
Every building will need maintenance and cleaning in order to maintain the good condition and profile image. At Fastech, we provide excellent maintenance service. Contracts can be purchased for yearly basis or by on-call service.
